Misframe

Oct 4, 2016

lm2 Transactions

Welcome back. In my previous post about lm2, I wrote the following:

I believe it’s possible to implement ACID transactions on top of anything that provides the following two properties:

  1. Atomic & durable writes
  2. Snapshot reads

lm2 provides both. So, can you implement serializable, ACID transactions on top of lm2? Yeah!

In fact, one really easy way is to just use a mutex. It’s that simple! I’ll leave it as an exercise for you to figure out how to do it.

Did you take some time to figure it out? Here’s my approach. The full code is on GitHub.

First, I added a writer lock. This is only used by writers. That means writers will block each other, but readers don’t block writers or each other.

type Collection struct {
	col        *lm2.Collection
	writerLock sync.Mutex
}

Next, there are two new wrapper functions called View and Update, which represent read-only and read-write transactions, respectively. Both wrappers create a snapshot cursor, which allows a transaction to see the collection as it was when the transaction began.

View

The View function doesn’t do much; it simply creates a cursor and passes it along. lm2’s cursors already provide snapshot reads. I think it’s important to mention that creating an lm2 cursor will provide a snapshot view up to the latest committed collection update, so stale reads are not a problem.

func (c *Collection) View(f func(*lm2.Cursor) error) error {
	cursor, err := c.col.NewCursor()
	if err != nil {
		return err
	}
	return f(cursor)
}

Update

The Update function is a little more interesting. If you don’t do any writes, this function works exactly like the View function. However, because we have the writer lock, this transaction is also guaranteed to have the latest view of the collection. Other writers are blocked until the previous writer is finished.

The Update function also creates and applies a WriteBatch, which is guaranteed by lm2 to be durable and atomic.

func (c *Collection) Update(f func(*lm2.Cursor, *lm2.WriteBatch) error) error {
	c.writerLock.Lock()
	defer c.writerLock.Unlock()

	cursor, err := c.col.NewCursor()
	if err != nil {
		return err
	}
	wb := lm2.NewWriteBatch()
	err = f(cursor, wb)
	if err != nil {
		return err
	}
	_, err = c.col.Update(wb)
	return err
}

That means transactions have

ACID! Woo!

Transactional Squares

I created a test to verify some of these ACID properties, mainly consistency.

First off, what does consistency mean in an ACID context, anyway? If you’re familiar with distributed systems and CAP, keep in mind that consistency in ACID is not like consistency in CAP. ACID consistency is about maintaining constraints. For SQL databases, these constraints may be uniqueness of indexes, or foreign key constraints.

In order to test consistency with lm2, which is a flat ordered key-value store, I had to come up with my own constraint. I created a simple set of formulas that describe the relations between three keys: a, b, and c. I call this constraint transactional squares. It’s easy to implement and verify.

a = a
b = a*a
c = b*b

As an example, here’s a table with each row representing a valid set for a, b, and c:

a b c
2 4 16
1 1 1
3 9 81

In the transactional squares test, I ran several goroutines that

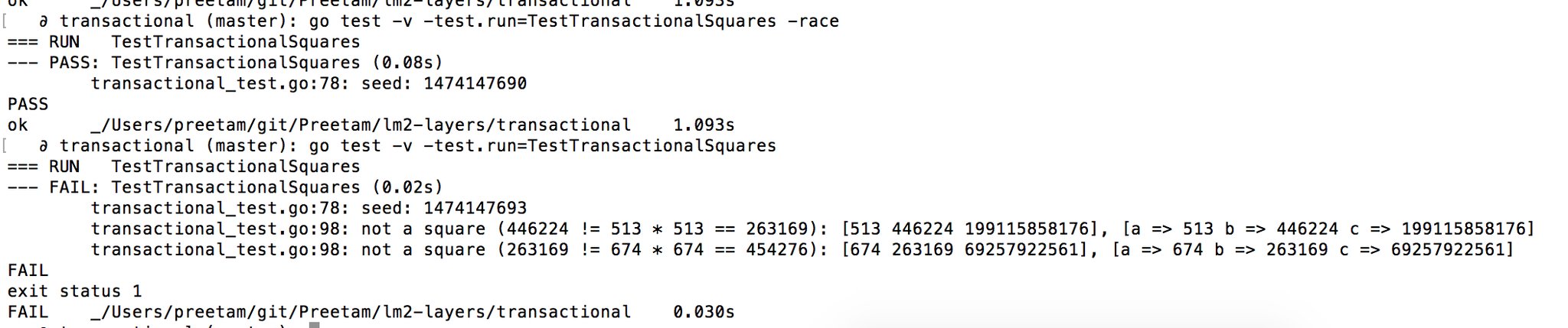

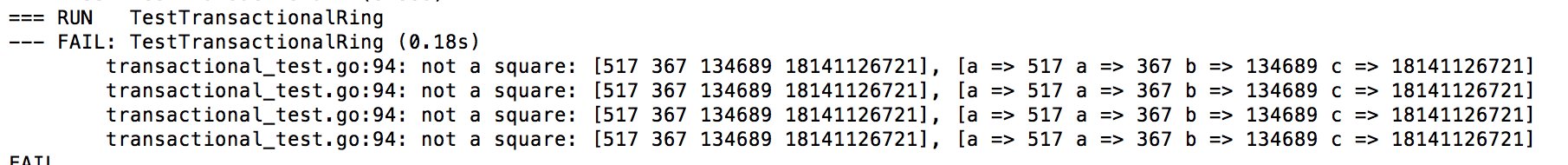

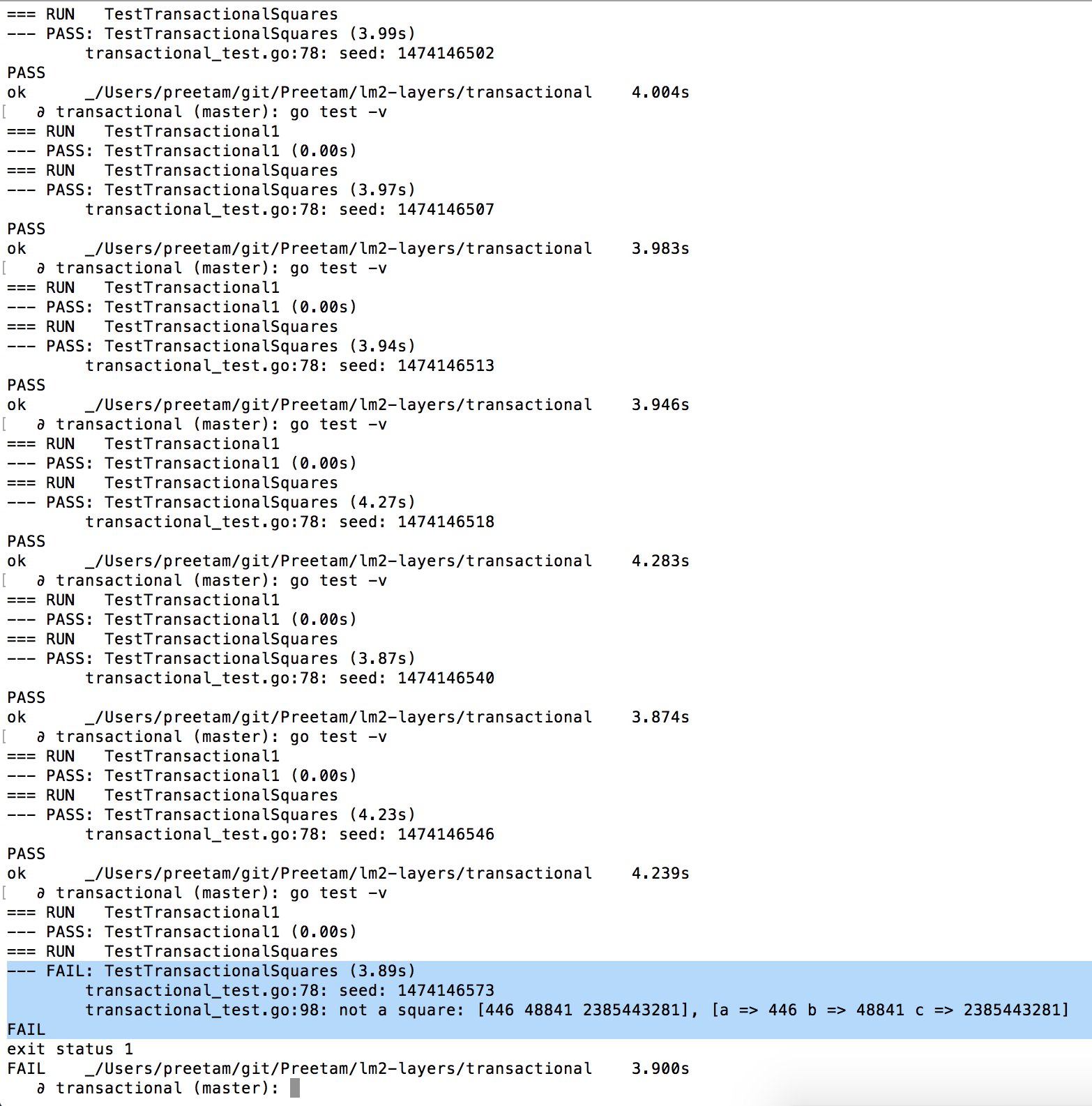

Here are some weird consistency bugs I found. :)




This was fun to work on :).
